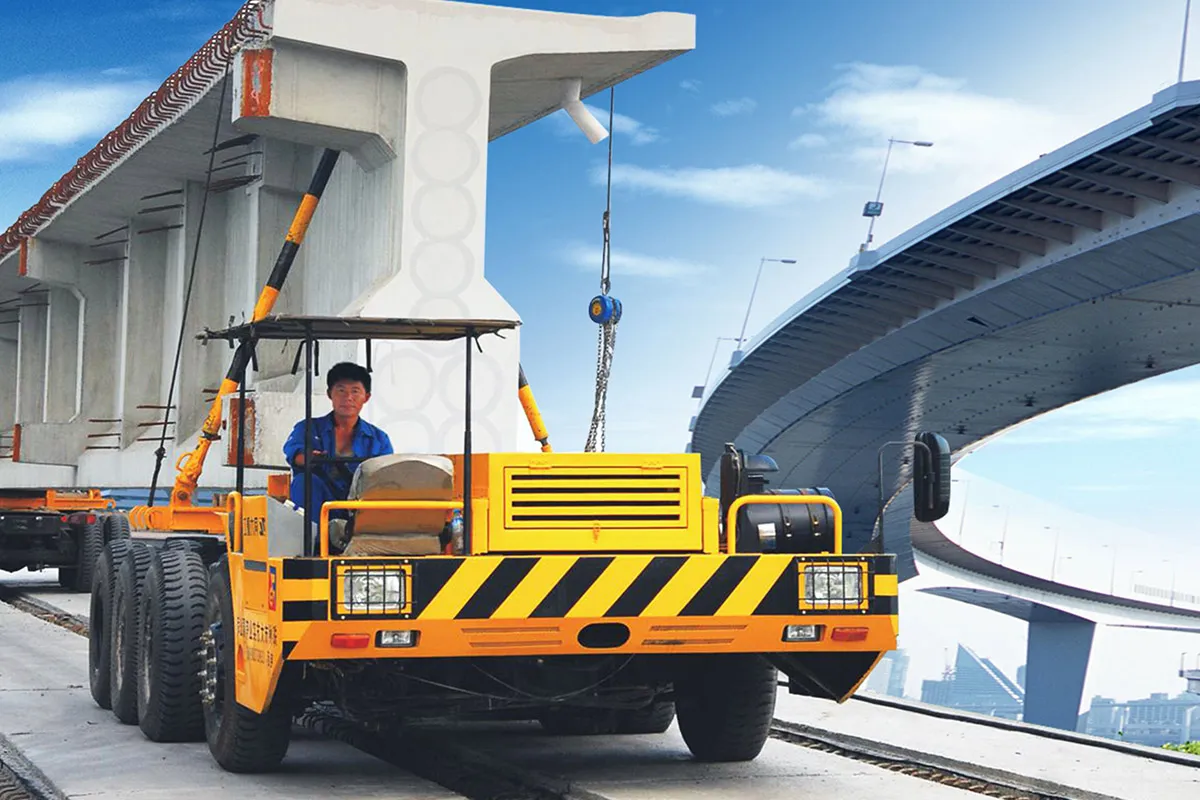

Off-Road Bridge Beam Transport Truck

Heavy haul truck and trailer for transporting bridge girders and beams

Key Parameters

Rated payload 180t

Max. lifting capacity 20t

Max. speed (laden) ≥17km/h

Turning radius 10.5m

Applications
Our TLQ series off-road bridge beam transport trucks are specialized engineering equipment for transportation of bridge construction materials for highways, railways, and intercity light rail.

Specifications

Model	Haul Truck TLQ100	Trailer TLQ102
Rated payload (t)	180
Kerb weight (t)	12.6	11
Max. speed (unladen) (km/h)	≥55
Max. speed (laden) (km/h)	≥17
Max. reverse speed (km/h)
Simultaneous beam loading mechanism (optional)	-	0-6m/min
Dimensions (mm)	7500/2960/1500
Wheel track (mm)	Front:2364 Middle/rear:2248
Turntable height (mm)	Unladen:1390
Distance between turntable and front end	5515
Min. ground clearance (mm)	270
Turning radius (m)	10.5
Transverse/longitudinal slope	Unladen:21%/15% Laden:9%/6%

Features

Our off-road bridge beam transport truck is consisted of two sections, i.e. TLQ100 main haul truck and TLQ102 auxiliary trailer.
TLQ100 haul truck can be used as both main haul truck and auxiliary trailer, featuring bidirectional operation, traction drive, braking, turning, and simultaneous beam loading capabilities.
TLQ102 trailer can only be used as auxiliary trailer, with self-propulsion, braking, turning, and simultaneous beam loading capabilities.
