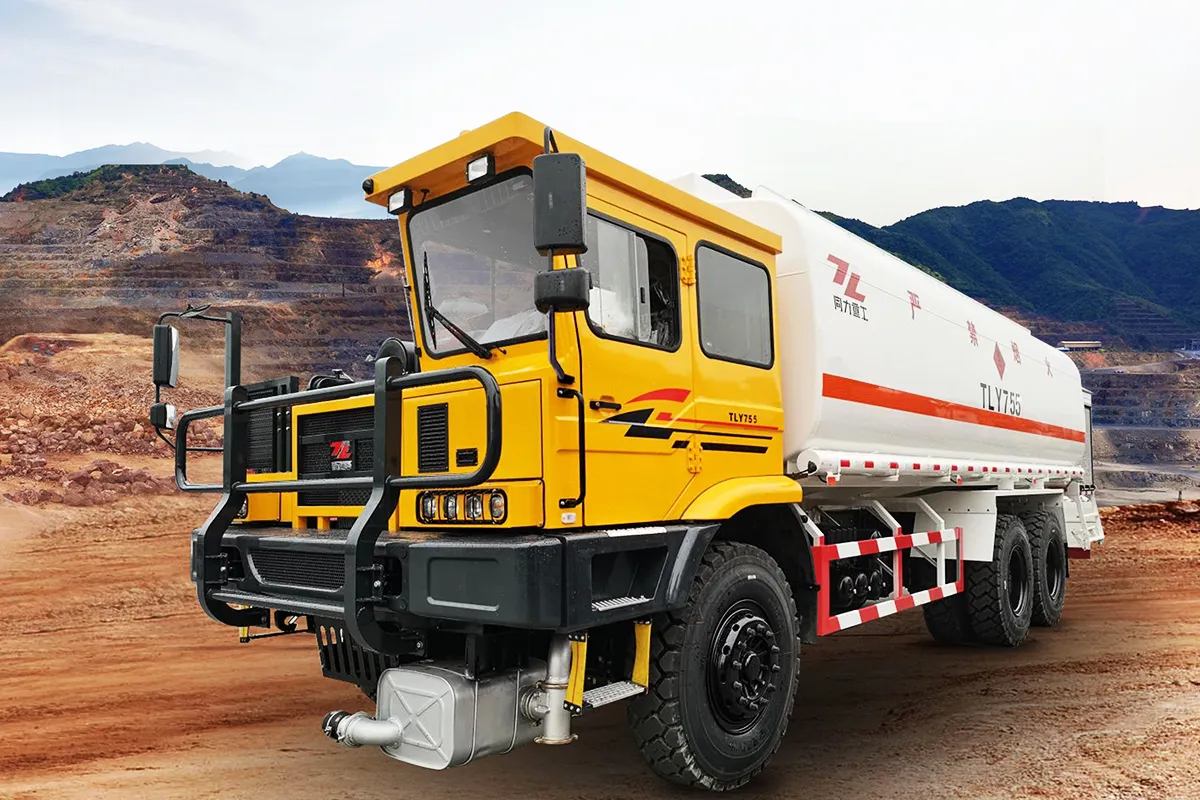

Off-Road Fuel Truck

Refueling truck for off-road mining applications

Key Parameters

Engine power 460HP

Fuel tank capacity 40m³

Max. flow 240-300L/min

Applications
Our off-road fuel trucks are highly capable and suitable for various mining projects requiring mobile refueling.

Specifications

Model	TLY751
Max. kerb weight (t)	58
Engine power (HP)	460
Fuel tank capacity (m³)	40
Dimensions (mm)	11135×3340×3860
Max. speed (km/h)	40
Transmission	7-speed mechanical transmission
Tire	14.00-25
Fuel dispensing unit (set)	2
Max. flow (L/min)	240-300
Overfill protection	Available
Standard bottom loading port	Available
Vapor recovery	Available
Anti-static (parking)	Available
Anti-static (travel)	Available
Emergency shut-off	Available

Features

Our off-road fuel trucks are equipped with various safety devices, including front exhaust system, flame arrester, explosion-proof manhole cover, emergency cut-off valve, anti-static devices for driving and parking, oil vapor recovery system, overflow prevention device, and a 360° panoramic system, ensuring high safety for the vehicles.
Designed for mining safety conditions, our innovative low-speed oil pump unit allows for high-flow refueling at idle, with a single fuel nozzle flow rate of 240-300L/min. Each truck has two refueling systems, making our trucks’ overall refueling efficiency 3-4 times that of standard fuel trucks.
The tank‘s ultra-large cross-section design increases its volume to 2-3 times that of standard highway fuel trucks, enhancing versatility and effectively reducing overall operating costs.
The chassis uses our off-road wide-body mining chassis, specifically designed for mining roads, resulting in significantly higher reliability and uptime compared to standard highway fuel trucks.
