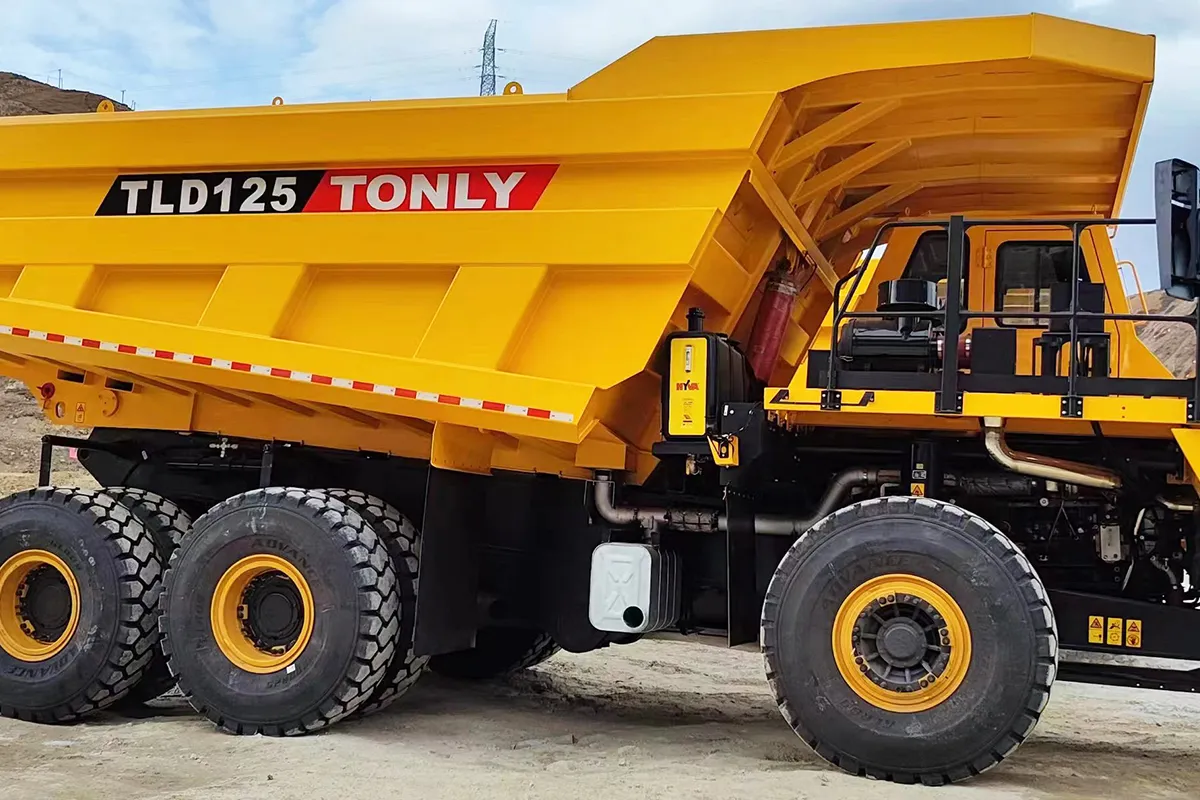

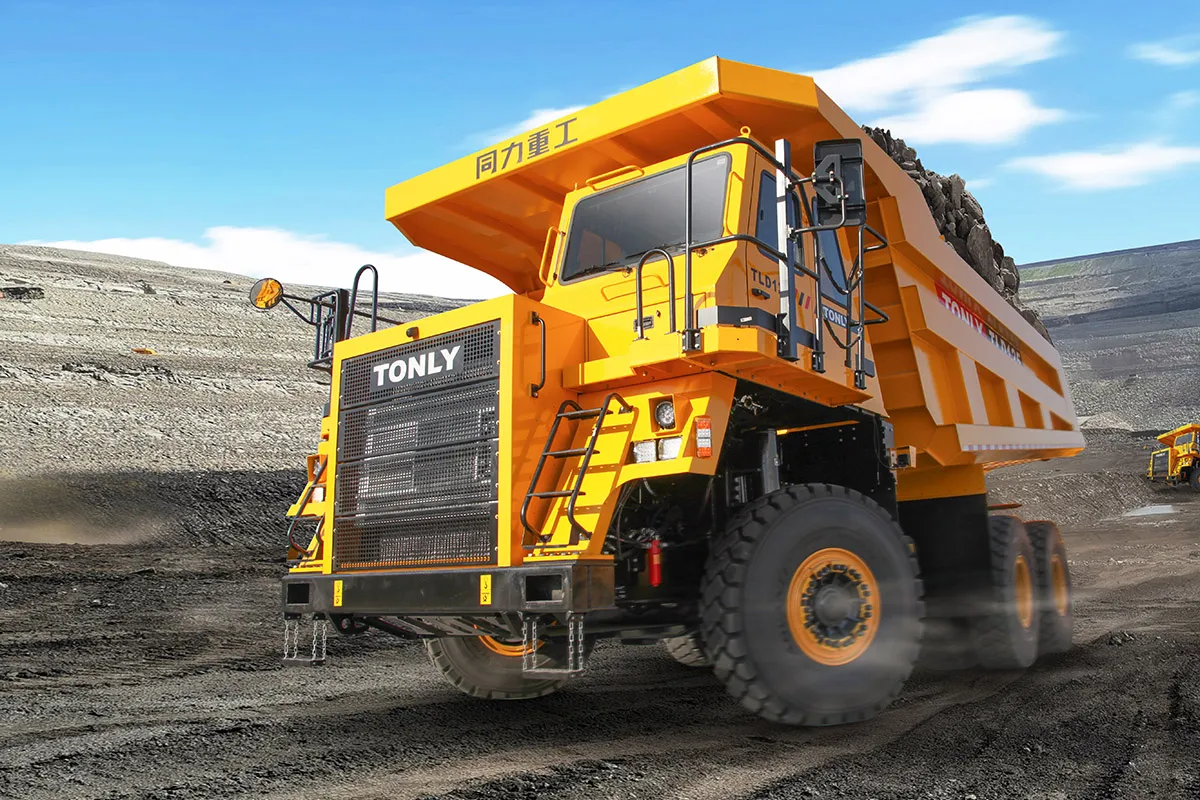

Stock Code 920599
-
91 Ton

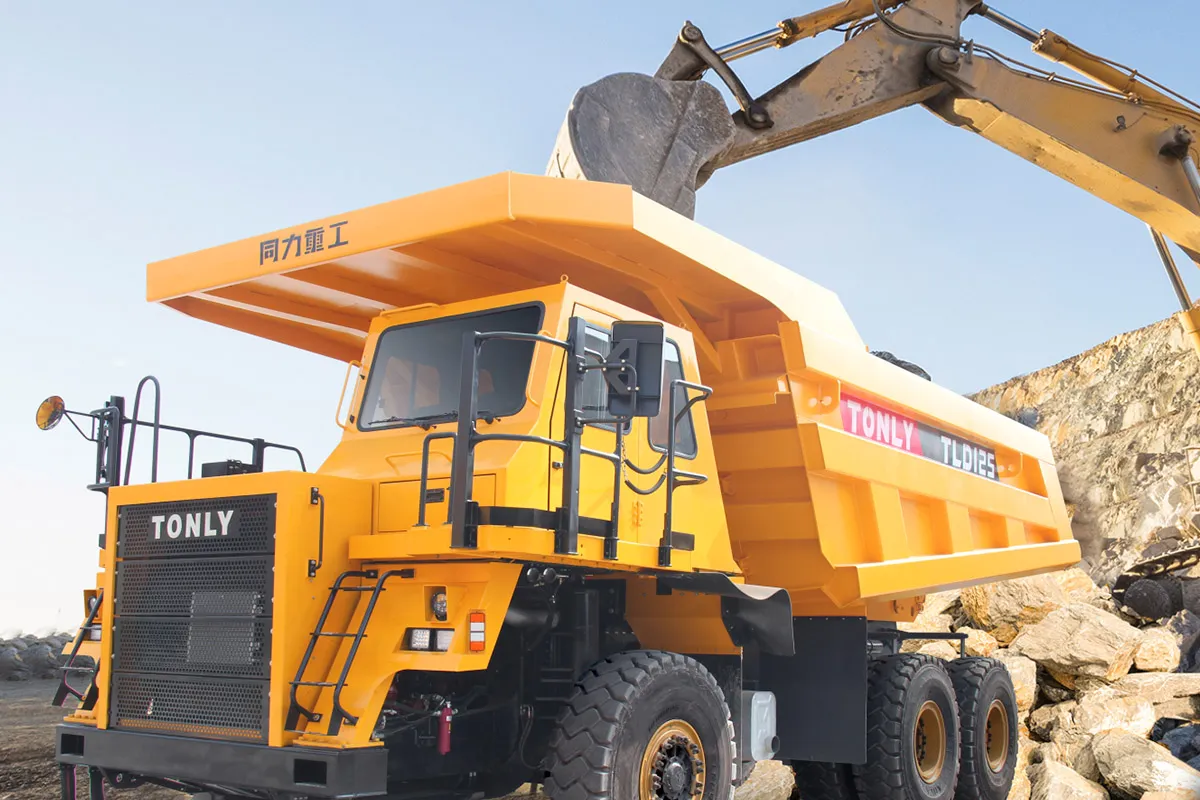

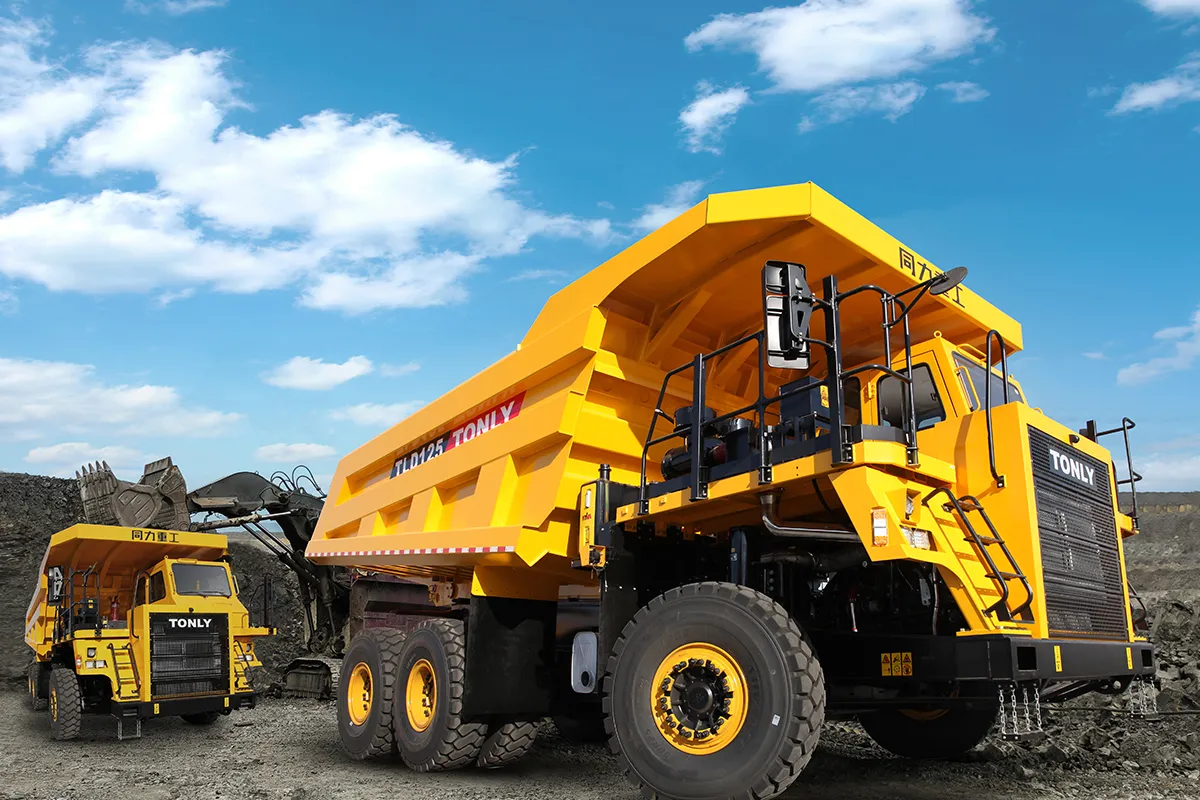

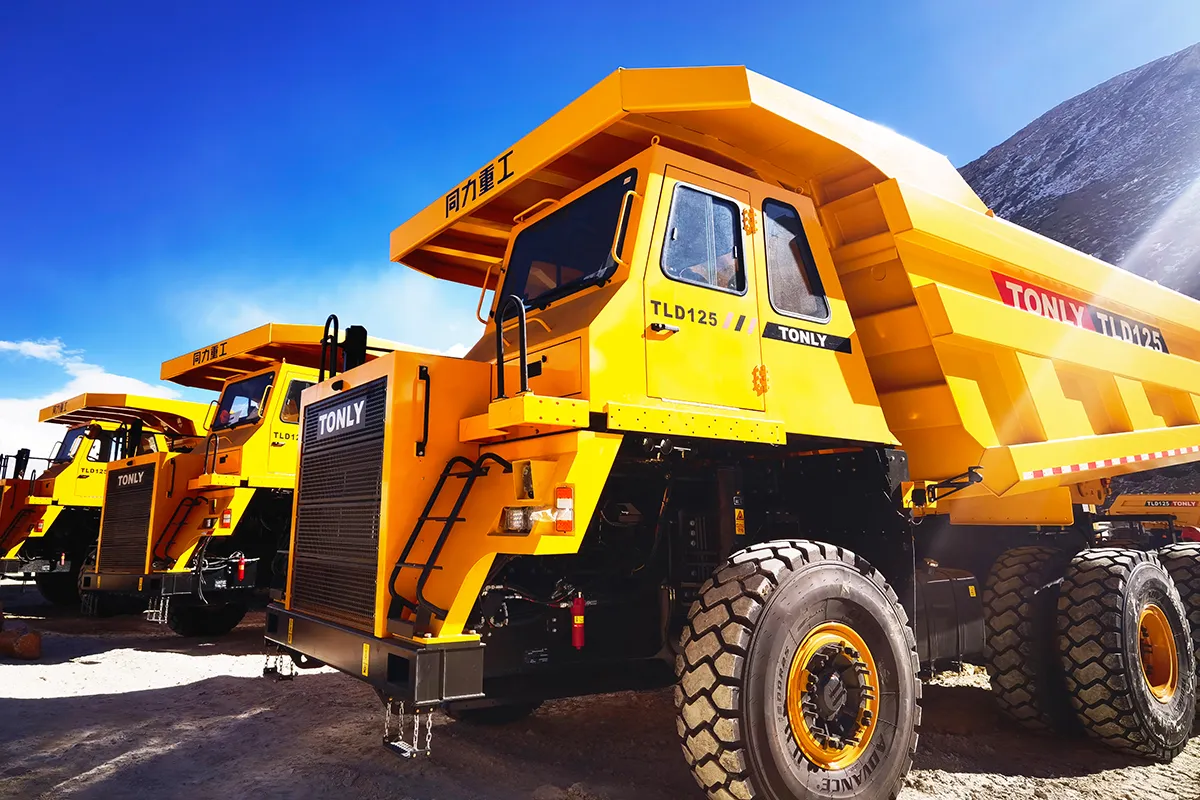

Diesel Mining Dump Truck
Rigid dump truck with four-wheel drive
This product has been discontinued and removed from our shelves.
Key Parameters
-
Engine power 775HP
-
Rated payload 91t
-
Dump body capacity 45/53m³
Applications
Transportation in large-sized open-pit mines
Specifications
| Model | |
| Kerb weight (t) | 46 |
| Rated payload (t) | 91 |
| Engine power (HP) | 775 |
| Axle load (t) | 30+50+50 |
| Cab | 4th generation left hand cab |
| Suspension system | Full hydropneumatic suspension |
| Steering system | Fully hydraulic steering |
| Tire | 18.00R25 |
| Dump body capacity (m³) | 45/53 |
| Max. speed (km/h) | 40 |
| Drive mode | 6×4 |
Features

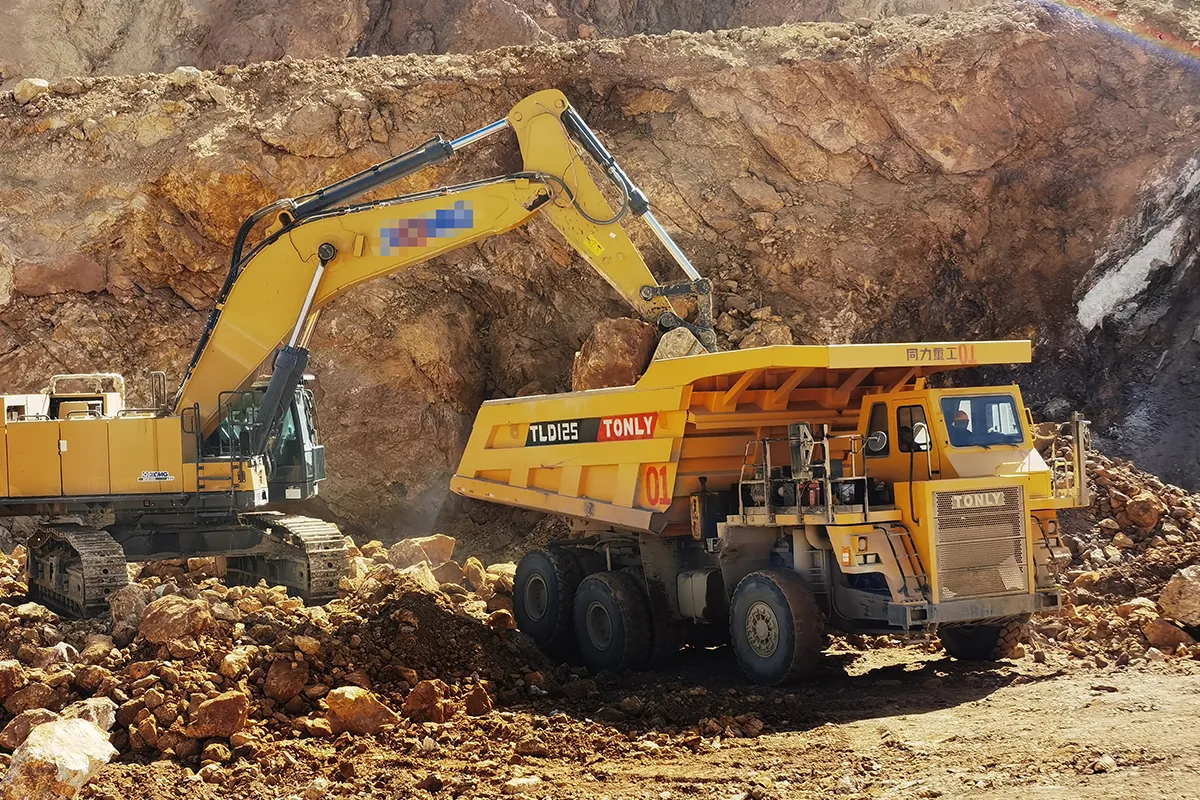

- Our mining dump trucks can accommodate loading equipment like 1250 excavators, from both the side and rear of the dump truck.
- With a “raised rear + long overhang” dump body design, our mining dump trucks can discharge over a 1000mm high retaining wall with thorough unloading, with no need of a loader to push material. They also allow large materials to unload without jamming, enhancing unloading safety.
- With a broader range of equipment compatibility, our mining dump trucks can match with 7-10m³ excavators or electric shovels, filling the truck with 4-6 bucket, achieving optimal loading efficiency. Additionally, our dump trucks can withstand a loading impact mass of 20t/bucket.
Configurations

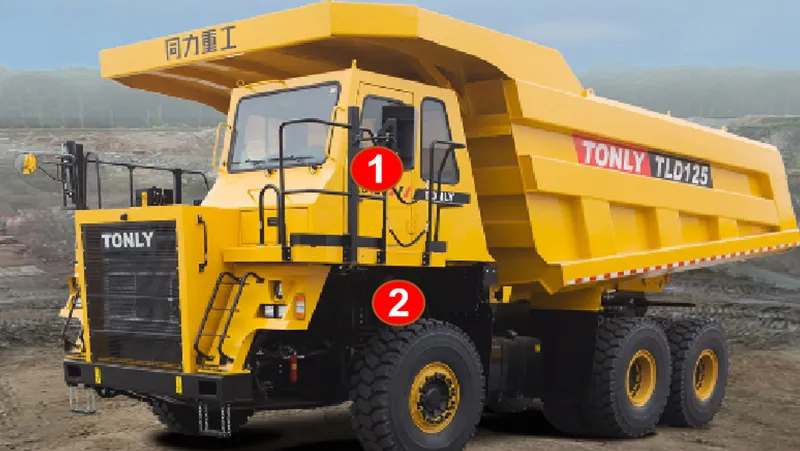

1 Mining truck cab
In addition to high reliability and excellent ergonomic performance, the rigid frame structure is designed with double doors, making it safe and convenient for operation.
2 Fully hydraulic steering gear
The fully hydraulic steering gear can output a large steering torque, enabling easy operation and high reliability.

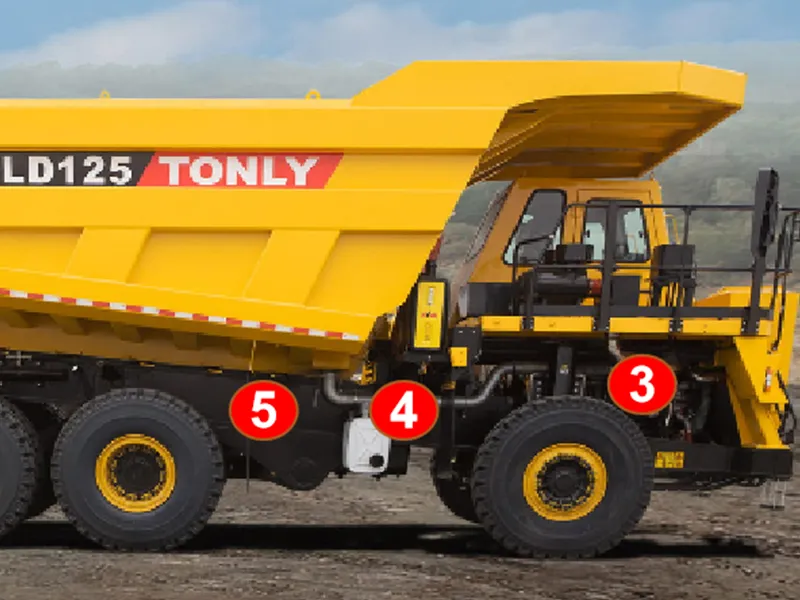

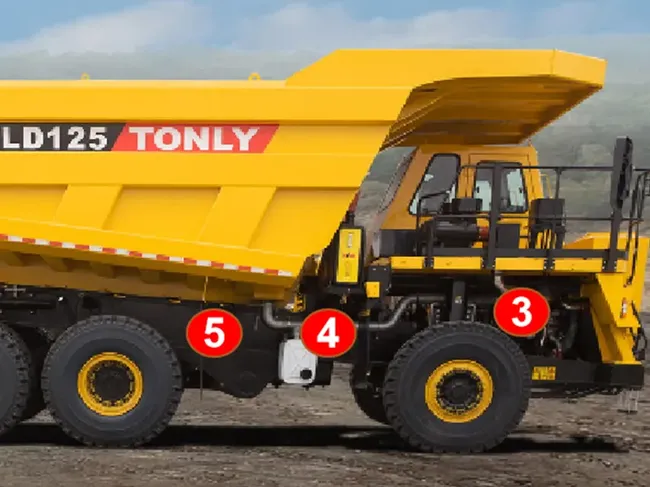

3 Engine
Off-road mining engine is professionally adjusted for off-road conditions, with strong power, low fuel consumption and high reliability.
4 Manual transmission
The mining transmission with single box and dual intermediate shaft, jointly developed by Tonly and FAST, is added with a forced lubrication device, presenting strong torque transmission capacity and high reliability. The optional integrated hydraulic retarder can reduce the consumption of brake shoes and improve the safety of the vehicle.
5 Rigid frame
The frame is a welded casting structure, and the key stress-bearing parts are made of castings, which can meet the requirements of 10m³ electric shovel loading, with extra-high loading capacity, excellent resistance to loading impact, high reliability, and a service life of more than 8 years.

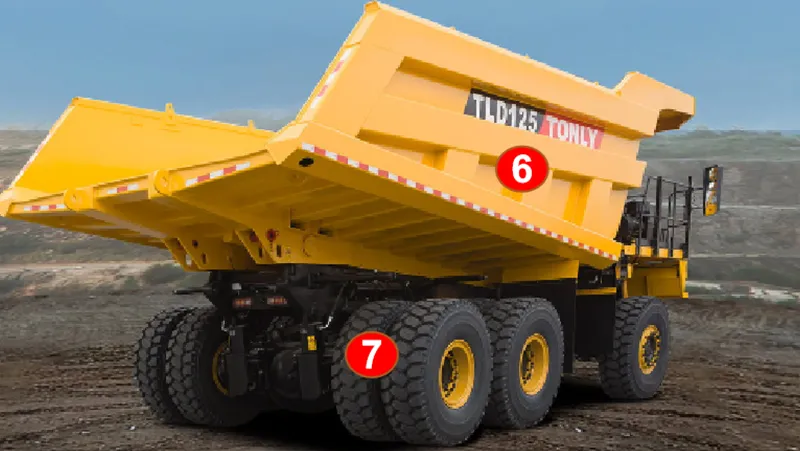

6 Dustpan dump body
The dustpan dump body can be loaded with 10m³ electric shovel and realize smoother loading and more thorough unloading. It can also be discharged to 1,000mm high retaining wall without the need of pushing the materials by a loader. Also, it can transport big stones without jamming, making it safer to unload.
7 OTR tire
OTR tire is equipped for different working conditions, with good adaptability to working conditions and long service life.

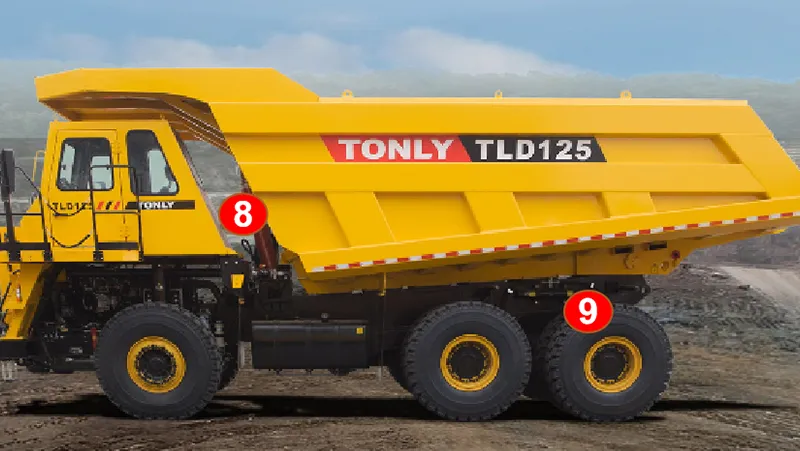

8 Lifting system
The mining-purpose hydraulic oil cylinder is high in lifting capacity, efficiency, safety and reliability.
9 Fully hydro-pneumatic suspension
With high bearing capacity and good comfort, the fully hydro-pneumatic suspension is professionally tuned to meet the load-bearing capacity when fully loaded while ensuring comfort when unloaded.
Related Cases

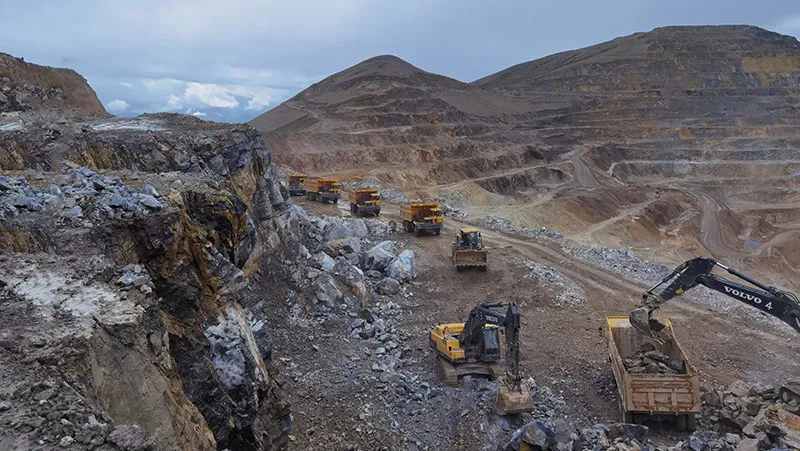

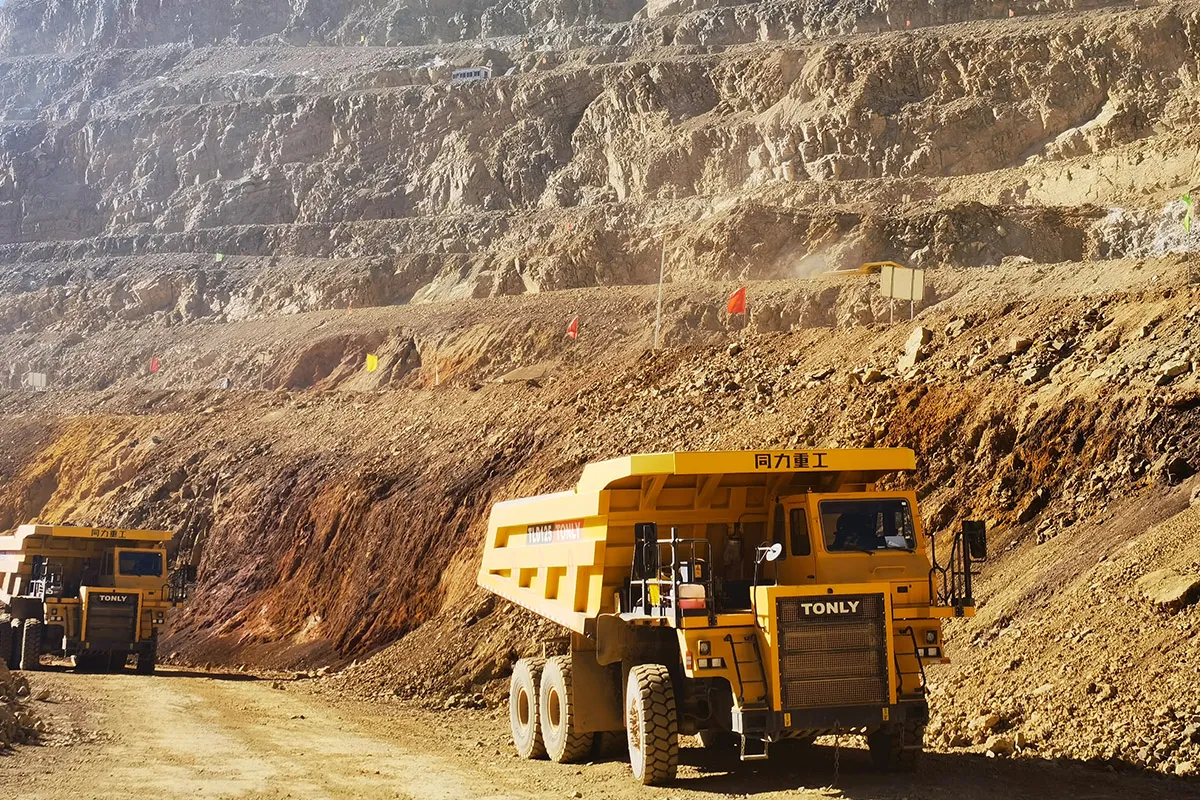

Yulong Copper Mine in Xizang
- Location: Jiangda County, Qamdo City, Xizang Autonomous Region
- Annual extraction: 400 million tons
- Site conditions: heavy-load uphill and downhill transportation (transportation distance: 3km)
- Environmental factors: high altitude, low temperature, frozen earth
- Recommendations: TL875, TL875B, TL875K, TLD125
