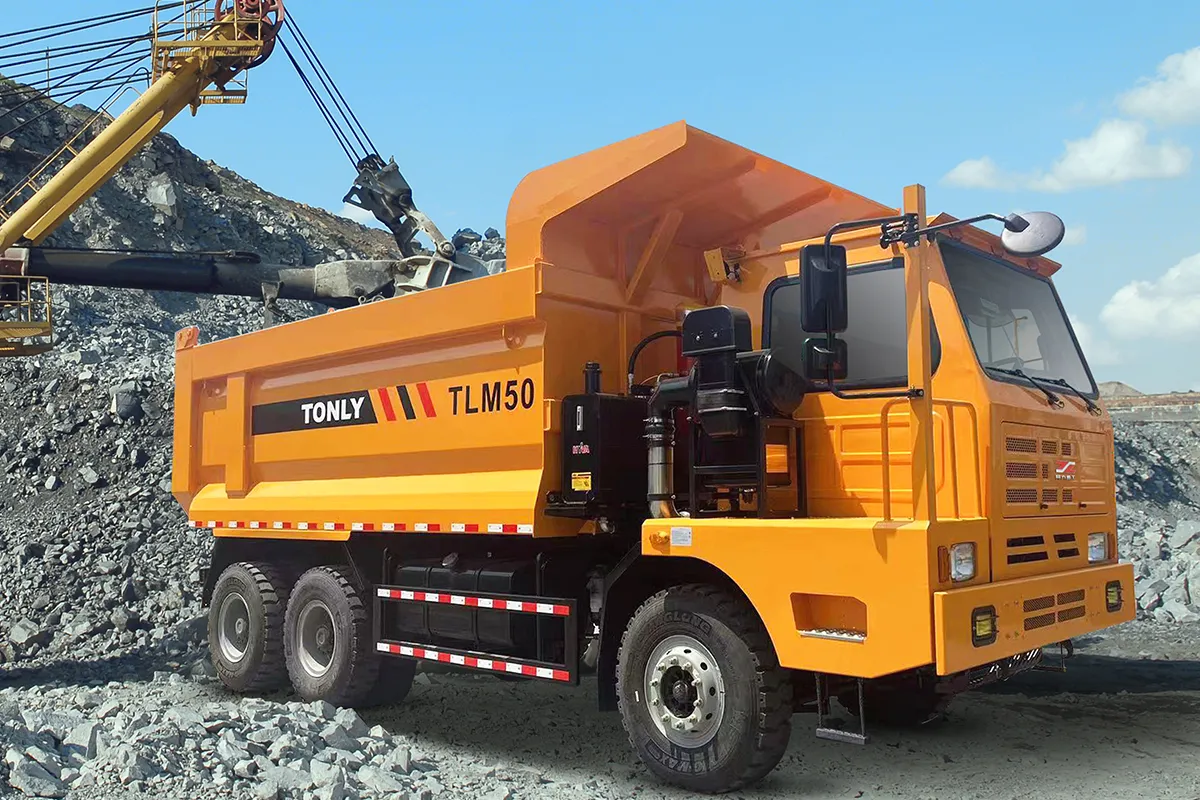

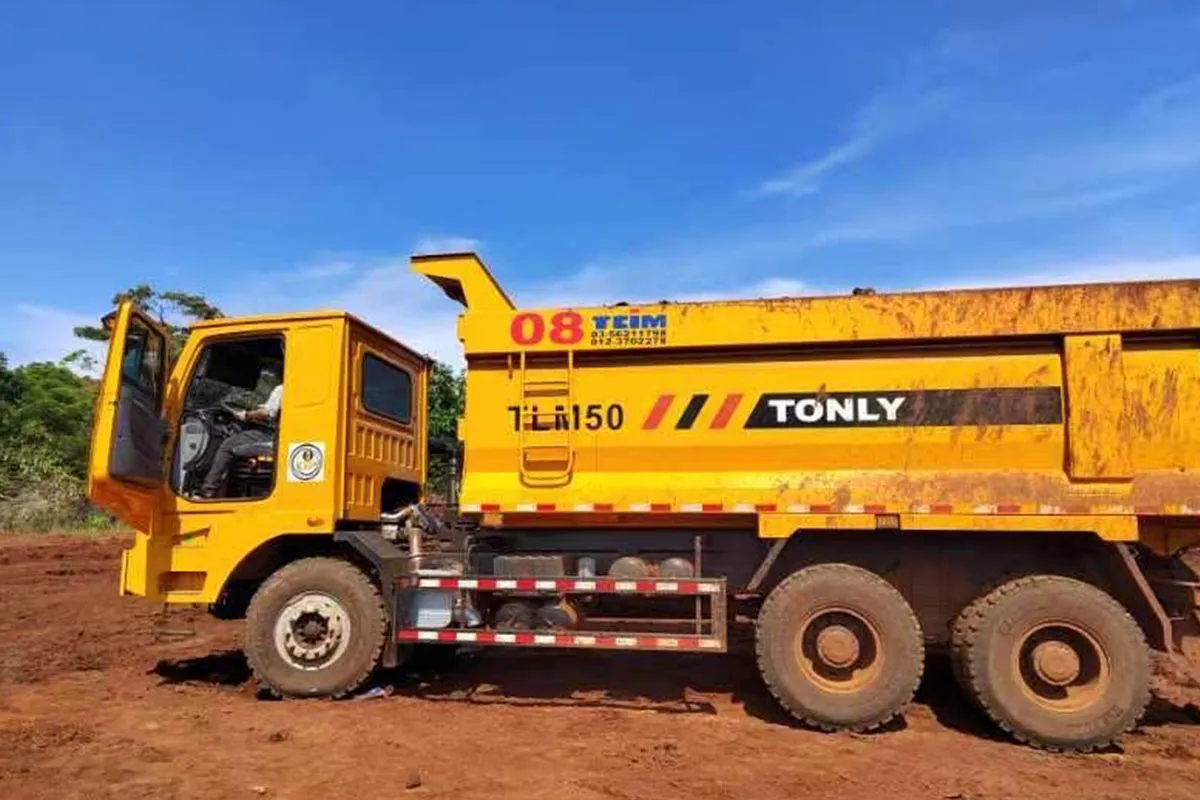

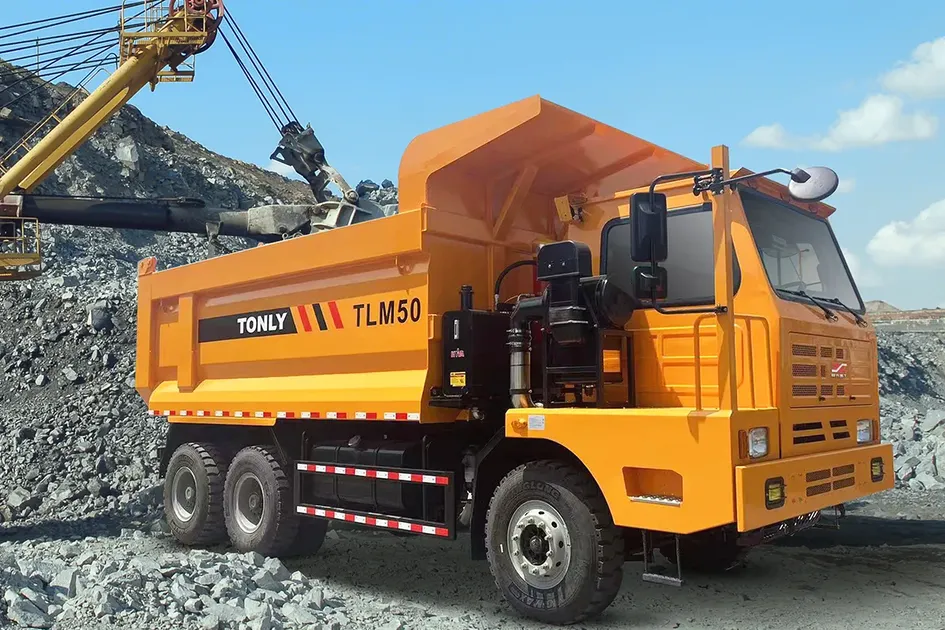

33 Ton Manual Off-Road Dump Truck
  • 33 Ton Manual Off-Road Dump Truck
  • 33 Ton Manual Off-Road Dump Truck
    • 33 Ton

    Manual Off-Road Dump Truck

    Rigid haul truck with 4WD manual transmission

    This product has been discontinued and removed from our shelves.

    Key Parameters

    • Engine power
      Engine power 380HP
    • Rated payload
      Rated payload 33t
    • Dump body capacity
      Dump body capacity 21m³

    Applications
    Heavy-duty uphill transportation in large open pit mines and quarries
    Request a Quote
    • Review
    • Manual Off-Road Dump Truck
    • Specifications
    • Configurations
    Specifications
    Model TLM50 TLM50R
    Kerb weight (t) 17
    Rated payload (t) 33
    Engine power (HP) 380
    Transmission Manual transmission
    Axle load (t) 9.5+16+16
    Cab Left hand cab Right hand cab
    Suspension system Leaf spring suspension
    Steering system Mechanical steering
    Tire 12.00R20
    Dump body capacity (m³) 21
    Max. speed (km/h) 70
    Drive mode 6×4
    Features
    • Our 33-ton manual off-road dump trucks are designed for mining, offering powerful performance and low fuel consumption.
    • Equipped with specialized lift cylinders developed for complex conditions, our trucks present strong lifting capabilities and high work efficiency.
    • With a professionally designed dump body structure, these dump trucks have high overall rigidity, impact resistance, wear resistance, and long service life.
    • In general, our manual off-road dump trucks are agile, efficient, low in consumption, and reliable for transportation.
    Configurations
    Cabin

    Each of our manual off-road dump trucks has a spacious cab.

    High Safety

    Anti-collision beam+ anti-roll frame rigid cab+ cross beam type bumper.

    High Reliability

    Adopting a high-power engine and a reinforced mining-specific gearbox, our manual off-road dump trucks are equipped with an advanced flexible frame, presenting strong ability to absorb and attenuate impacts. Also, they use a brand new axle with strong load-bearing and braking capabilities.

    High payload capacity (large single vehicle payload) and high overall efficiency.
